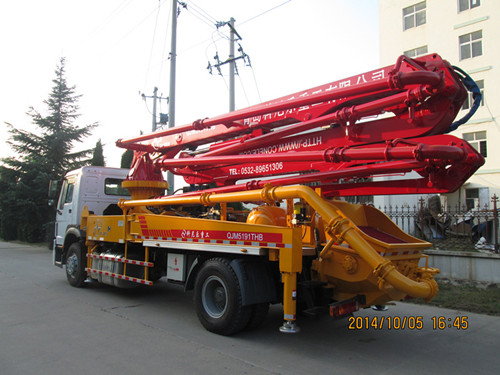

型號Model

QJM5200THB29-4M

項目

單位

值

泵送系統Pumping system

最大理論輸送量(高壓/低壓)Max. Theor. output(high/low pressure)

m³/h

55/90

混凝土最大出口壓力(高壓/低壓) Max. Theor. concrete output Pressure(high/low pressure)

MPa

13/7.5

額定工作壓力   Rated working pressure

MPa

32

泵送頻率(高壓/低壓) Pumping frequency(high/low pressure)

min^-1

18/30

料斗容積   Hopper capacity

L

450

上料高度 Filling height

mm

1450

液壓系統型式 Hydraulic system type

開式 Open loop

分配閥形式Distribution valve

S管閥 S valve

油缸缸徑×行程    Oil cylinder dia.×stroke

mm

φ125×1650

混凝土缸徑×行程Concrete cylinder dia.×stroke

mm

φ200×1650

液壓油冷卻Hydraulic oil cooling

風冷Air cooling

推薦塌落度 Recommended concrete slump

cm

12~23

最大骨料尺寸    Max. aggregate dimension

mm

40

臂架Placing boom

結構形式 Structure type

29-4M

最大布料高度 Placing depth

m

29

最大布料半徑 Horizontal distance

m

25

最大布料深度 Placing depth

m

18.4

回轉角度Slewing angle

365°

輸送管直徑  Pipe diameter

mm

125

末端軟管長度End hose length

mm

3000

臂架最小打開高度Min. height of opening placing boom

mm

10638

支腿跨距（前×后×縱向）Outriggers span (front×rear×side)

mm

6140×7098×6706

底盤及整車Chassis and the whole machine

底盤型號Chassis model

ZZ5207N5617D1

軸距 Wheelbase

mm

5600

發動機型號Engine type

D10.34-40

發動機額定功率 Engine power

kW

249kw

燃油箱容積Oil tank cubage

L

400

尾氣排放標準Tail gas exhaust standard

國IV

整車外形尺寸(長×寬×高) Overall dimensions

mm

10346x2480x3648

其它Others

潤滑方式Lubrication mode

手動液壓兩用同步潤滑泵

液壓油箱容積 Oil tank volume

L

500

控制方式Control mode

手動+遙控Manual＋remote control

壓力水箱最大壓力  Maximum water pressure

MPa

0.8

水箱容量  Water tank volume

L

400

混凝土管清洗方式Pipe cleaning mode

水洗/干洗Water cleaning/dry cleaning
